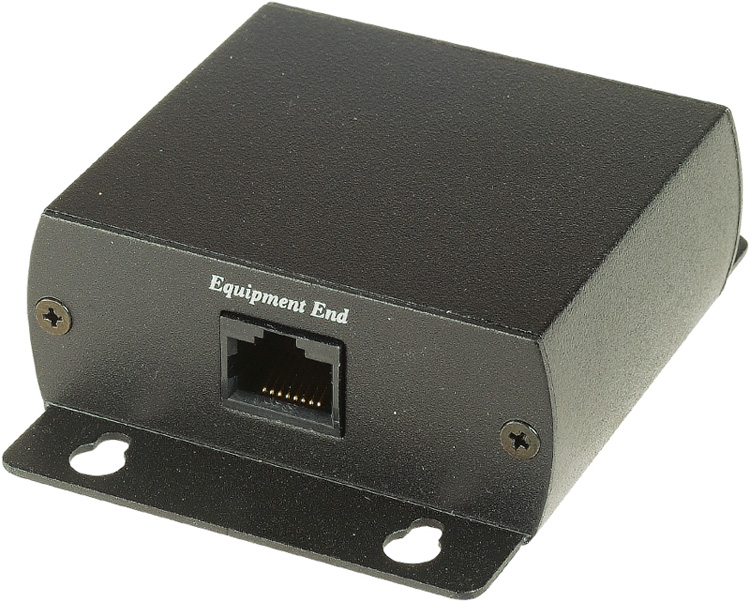

SP-006 ( Made in Taiwan )

Melindungi Peralatan CCTV(=ip camera/dvr/nvr) dari Surge, misalnya : petir

- pasang disisi camera untuk melindungi camera

- pasang disisi dvr untuk melindungi dvr

Network Surge Protection Device

Features:

Performs a different function than grounding requirements.
Protects equipment from high voltage surges from nearby lightning strikes.
Two stage protection: under100ns – 90V, over 100ns-12V.
Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video camera, monitors, mulitiplexers & Quad processor, VCR, etc.

Item	SP006
Surge Protection Attack Time	1 ns
Maximum Surge Voltage	4 KV
Surge Life	300 surges of 100Amps
Normal Resistance Across Coax	10,000 MΩ
Surge Resistance	Approx. 0Ω
BAND PASS	0~1 GHZ
Power Passing Capability	DC 90V, AC 90Vp-p, 65 Vrms at10 Amps
Insertion Loss	Less than 0.2 dB
Return Loss (10 ohms)	16dB
Connectors	RJ45
Dimensions mm	87x67x27
WEIGHT g	126
