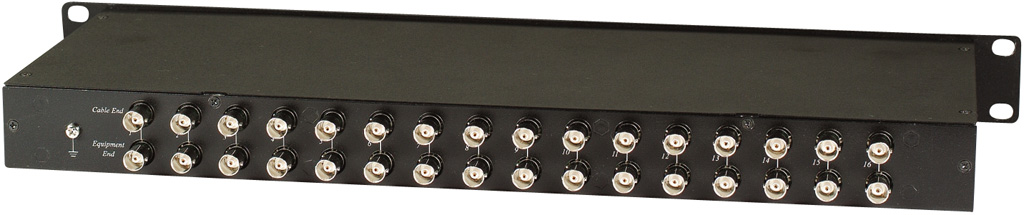

16 Channel Coaxial Surge Protection
Made in Taiwan
| Item | SP016C |
| Surge Protection Attack Time | 1 ns |
| Maximum Surge Voltage | 4 KV |
| Surge Life | 300 surges of 100Amps |
| Normal Resistance Across Coax | 10,000 MΩ |
| Surge Resistance | Approx. 0Ω |
| BAND PASS | 1 GHZ |
| Power Passing Capability | 130V AC / DC, 65 Vrms at10 Amps |
| Insertion Loss | Less than 0.2 dB |
| Return Loss (75 ohms) | 16dB |
| Connectors | BNC |
| Dimensions | 482x170x 44mm standard 1U Rack Panel |
| WEIGHT | 1200 gram |
